Client-go

2023-06-03T14:11:02+08:00 | 3分钟阅读 | 更新于 2023-06-03T14:11:02+08:00

@

client-go客户端分类

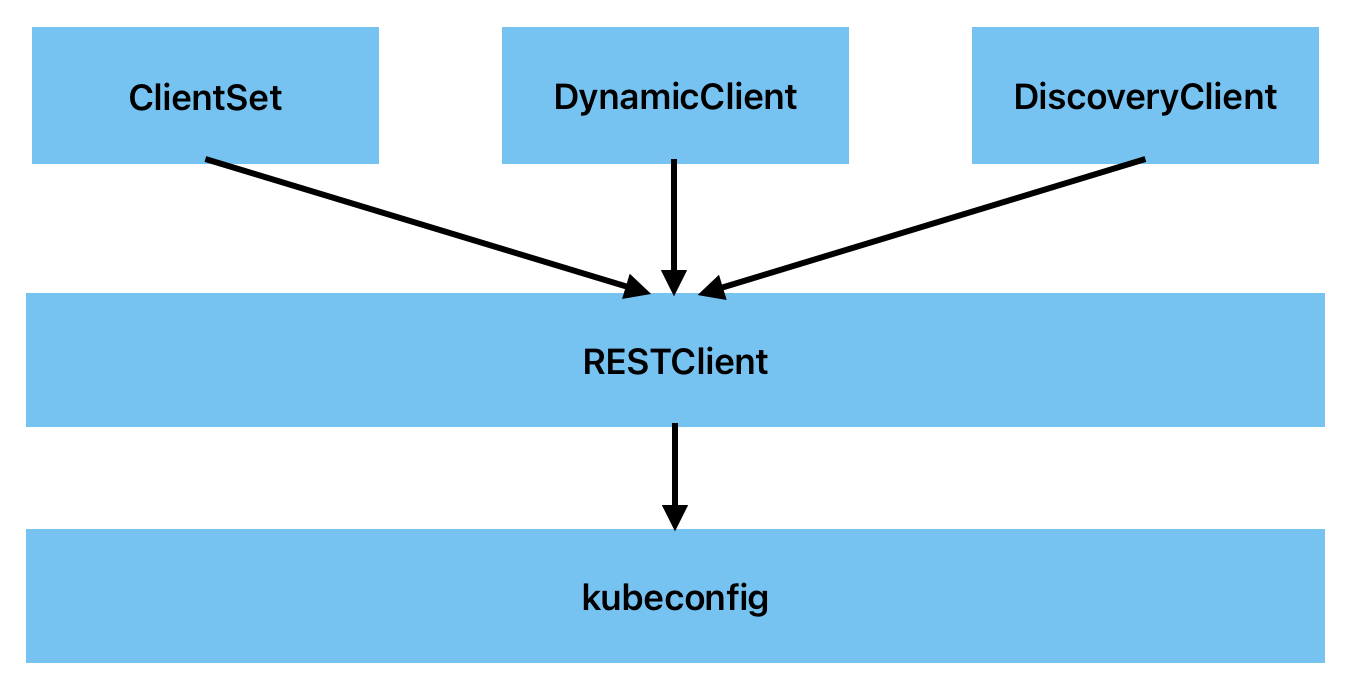

client-go支持4种Client客户端对象与Kubernetes API Server交互的方式,Client交互对象如图所示。

image-20250411213740978

RESTClient是最基础的客户端。RESTClient对HTTP Request进行了封装,实现了RESTful风格的API。ClientSet、DynamicClient及DiscoveryClient客户端都是基于RESTClient实现的。

ClientSet在RESTClient的基础上封装了对Resource和Version的管理方法。每一个Resource可以理解为一个客户端,而ClientSet则是多个客户端的集合,每一个Resource和Version都以函数的方式暴露给开发者。ClientSet只能够处理Kubernetes内置资源,它是通过client-gen代码生成器自动生成的。

DynamicClient与ClientSet最大的不同之处是,ClientSet仅能访问Kubernetes自带的资源(即Client集合内的资源),不能直接访问CRD自定义资源。DynamicClient能够处理Kubernetes中的所有资源对象,包括Kubernetes内置资源与CRD自定义资源。

DiscoveryClient发现客户端,用于发现kube-apiserver所支持的资源组、资源版本、资源信息(即Group、Versions、Resources)。

以上4种客户端:RESTClient、ClientSet、DynamicClient、DiscoveryClient都可以通过kubeconfig配置信息连接到指定的Kubernetes API Server,后面将详解它们的实现。

client-go使用

1. InCluster (集群内)

// 创建一个Config实例,主要配置需要操作的集群信息,就是apiserver的address和port

config,err := rest.InClusterConfig()
if err!=nil{
  panic(err.Error())
}

// 创建一个clientSet客户端,也可以创建其它的客户端
clientSet,err :=kubernetes.NewForConfig(config)
if err!=nil{
  panic(err.Error())
}

// 使用clientSet操作集群:获取集群Pod列表
pod,err := clientSet.CoreV1().Pods("").List(context.TODO(),metav1.ListOptions{})
if err!=nil{
  panic(err.Error())
}

// len(pod.Items) 集群中pod的个数

2. OutOfCluster (集群外)

 // 配置kubeconfig文件
  var kubeconfig *string
	if home := homedir.HomeDir(); home != "" {
		kubeconfig = flag.String("kubeconfig", filepath.Join(home, ".kube", "config"), "(optional) absolute path to the kubeconfig file")
	} else {
		kubeconfig = flag.String("kubeconfig", "", "absolute path to the kubeconfig file")
	}
	flag.Parse()

	// 使用当前kubeconfig文件创建Config
	config, err := clientcmd.BuildConfigFromFlags("", *kubeconfig)
	if err != nil {
		panic(err.Error())
	}

	// 和集群内一样,开始创建clientset
	clientset, err := kubernetes.NewForConfig(config)
	if err != nil {
		panic(err.Error())
	}
	for {
		pods, err := clientset.CoreV1().Pods("").List(context.TODO(), metav1.ListOptions{})
		if err != nil {
			panic(err.Error())
		}
		fmt.Printf("There are %d pods in the cluster\n", len(pods.Items))

		// Examples for error handling:
		// - Use helper functions like e.g. errors.IsNotFound()
		// - And/or cast to StatusError and use its properties like e.g. ErrStatus.Message
		namespace := "default"
		pod := "example-xxxxx"
		_, err = clientset.CoreV1().Pods(namespace).Get(context.TODO(), pod, metav1.GetOptions{})
		if errors.IsNotFound(err) {
			fmt.Printf("Pod %s in namespace %s not found\n", pod, namespace)
		} else if statusError, isStatus := err.(*errors.StatusError); isStatus {
			fmt.Printf("Error getting pod %s in namespace %s: %v\n",
				pod, namespace, statusError.ErrStatus.Message)
		} else if err != nil {
			panic(err.Error())
		} else {
			fmt.Printf("Found pod %s in namespace %s\n", pod, namespace)
		}

		time.Sleep(10 * time.Second)
	}
